Herkunftsort:
CHINA
Markenname:
Lijiang
Zertifizierung:
CE
Modellnummer:
LJZK 2535
Video

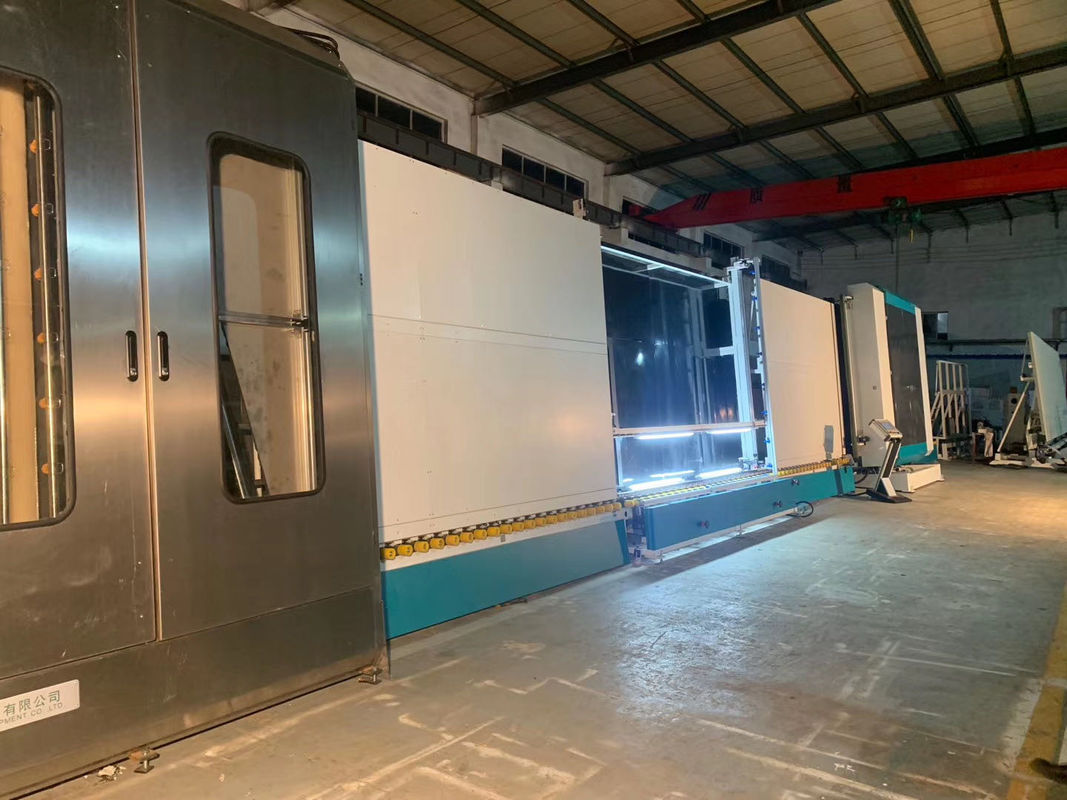

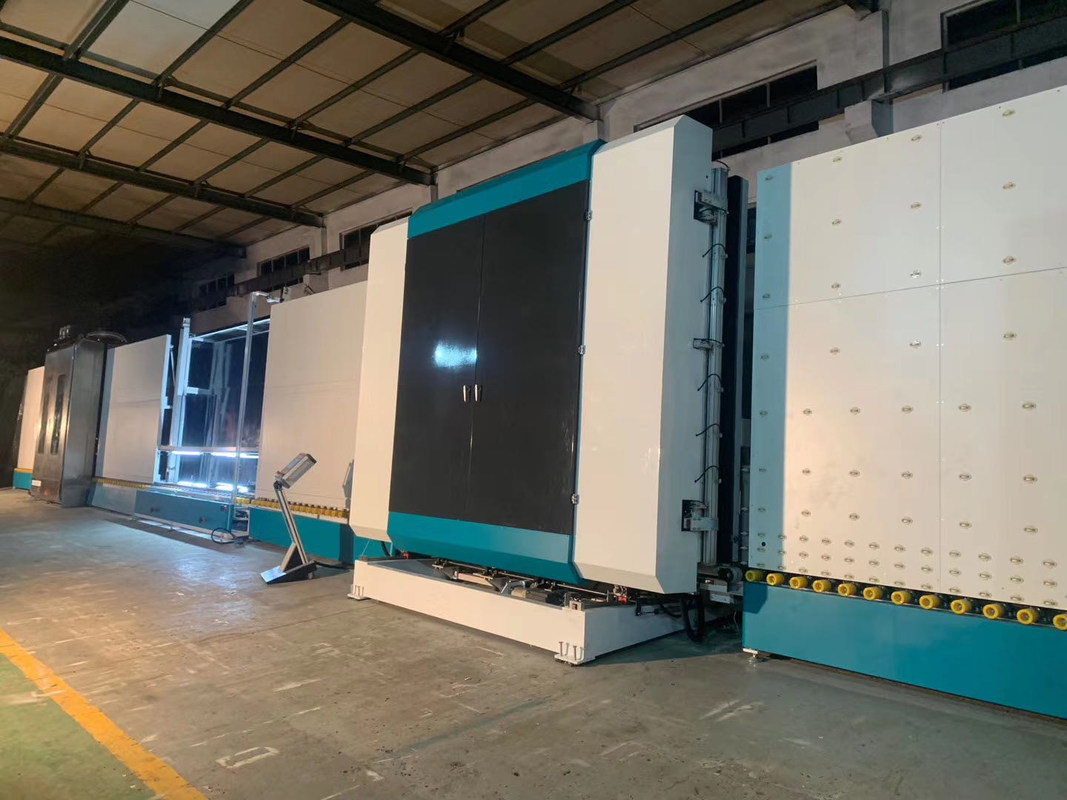

Double Glazing Insulating Glass Making Manufacturing Machine
Insulation glass machine can perform the following functions: cleaning glass, installing aluminum frame, ordinary double glass, three ordinary glasses, profiled glass and double pressing glass.
Insulated glass machines are special equipment for the production of double-glazed windows with aluminum strips, which have small dimensions, high efficiency, reliable operation and easy maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, lightweight and intelligent work;
2, world-renowned brands of key components, ensuring stable operation and long service life;
3, High quality glass is designed for processing such as reflective glass, low E glass, tempered glass and laminated glass;
4, Large scale glass processing, various models and settings available;
5, large power output, 1000 pcs output in one business day;
6, working for double layer, triple layer, stepped sheet and extraordinary insulating glass;
7, Automatic filling of organ air with gas during assembly of a glass sheet;
8, PLC control system, touch screen;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
Company Information
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
